Fast Changeable Style C Z Purling Roll Forming Machine

  • >=1 Sets
    $36,500.00
Model Number:
ZY
Power(W):
5.5KW
Lead Time:
Quantity(Sets) 1 - 15 >15
Est. Time(days) 45 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
2 Years
Type:
Tile Forming Machine
Production Capacity:
0-10m/min
Certification:
CE/ISO9001
After-sales Service Provided:
Online support, Video technical support, Engineers available to service machinery overseas
Condition:
New
Tile Type:
Colored Steel
Use:
Wall
Place of Origin:
Hebei, China
Brand Name:
ZY
Voltage:
380V 50Hz 3phases
Dimension(L*W*H):
6500*1300*1100
Weight:
5 Tons
Decoiler Type::
Manual decoiler
Weight capacity of decoiler::
5.0 T
Inner diameter::
350-550mm
Outer diameter::
1200mm
Speed of forming::
8-12m/min
Roller::
15 groups rollers
material::
Cr12 steel after treatment
Cutting l::
Cr12 steel after treatment
Hydraulic motor power::
5.5KW
Supply Ability
Supply Ability:
50 Set/Sets per Month
Packaging & Delivery
Packaging Details
nude, the computer controlling part is packed with water proof cloth.
The adjustable roll forming machine packed 20 feet container, it fit for ocean shipping. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.
Port
FOB Tianjin
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 15 >15
Est. Time(days) 45 To be negotiated
C&Z Machine
Setting Information
Weight capacity of decoiler
5T
Inner diameter
350-550mm
Processing Material
PPGI,GI
Control Style
PLC
Outer diameter
1200mm
Main motor power
11KW
Speed of forming
8-12m/min
Material of main shaft
High grade No. 45 steel after treatment
Diameter of main shaft
80mm
Roller
7 rollers, 4 up, 5 down

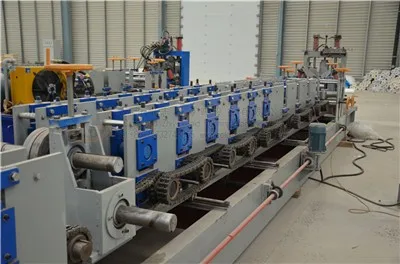

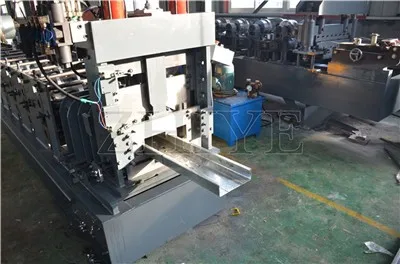

This kind of machine can produce C, Z two profiles, through the exchange side of the roller up and down position to achieve C, Z purlin conversion, just need about half an hour to achieve saving time. This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins of the width with high precision, but also save time to increase production.
Techical description:
1)Decoiler
Decoiler Type: Manual decoiler
Weight capacity of decoiler: 5.0 T
Inner diameter: 350-550mm
Outer diameter: 1200mm
2)Feeding and Leveling Device
It used for making the material flat before feeding into the roll forming machine.
Roller: 7 rollers, 4 up, 5 down

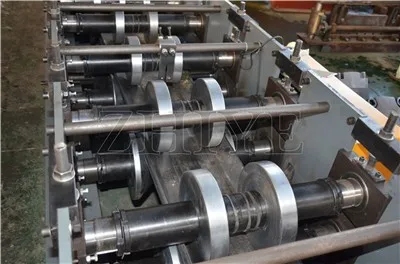

3)Rolling Forming System
It can change C Z shape automaticly and different size you just input data in PLC.
Main motor power: 11KW
Speed of forming: 8-12m/min
Material of roller: 45# steel polished and coated with chrome HRC55-60°
Roller: 15 groups rollers
Material of main shaft: High grade No. 45 steel after treatment
Diameter of main shaft: ? 80mm
Driven: 1''chain
4) Hydraulic Punching & Cutting
Punching Type: Hydraulic Punching
Punching material: Cr12 steel after treatment
Punching die: Cr12 steel after treament
Cutting material: Cr12 steel after treatment
Hydraulic motor power: 5.5KW
5)Control system
Type: PLC Frequency Control System with touch screen
PLC Brand: Japan Panasonic
Encoder Brand: Omron
Length Error: ± 2mm
Main features of C Z purlin roll forming machine
The advantages of CZ purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.Easy operation, low maintenance cost
3.Infinite sizing(any size within machine range),help to save material
4.Optional Punch hole at any position of purlin web side and flange side
Technical parameter of product line
Applied plank stuff:color armor plate
Applied slab thickness:1.8mm-3.5mm
Line speed:16-18m/min
Roll diameter:80mm
Hydraulic automatic uncoile
Dimension:11.5m*1.9m*1.4m
Weight:5t
Power:4kw
Hydraulic station power:4kw
Processing flow:
decoiling----loading----molding----cutting----off-discharging
Equipment parts
steel strip supporting frame
Feeding platform
Automatic shearing system
Hydraulic system
Steel strip unfolding system
Computer control system (imported computer)
High-precision automatic counter
Receiving table
Optional equipment
Hydraulic automatic uncoiler
Working space and workman for the equipment:
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter

Product Description

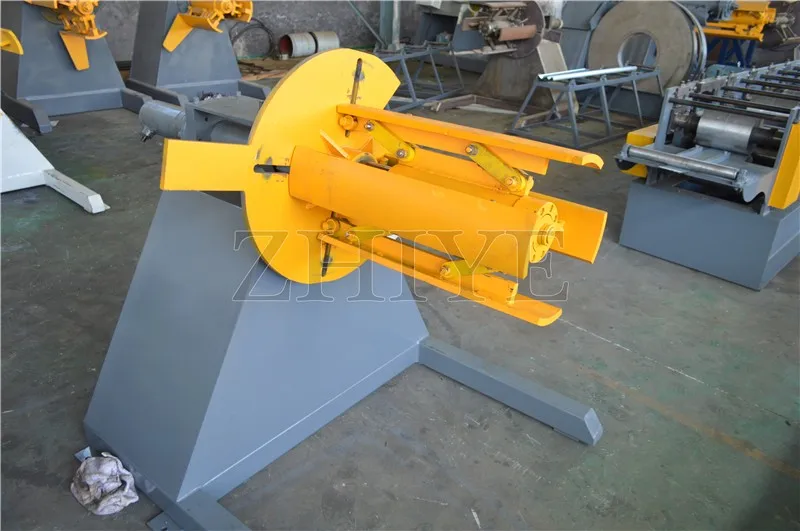

Manual Uncoiler

Usage: It is used to support the steel coil and uncoil it The steel coil is expansion by hand.
Loading capacity:2T
Inner diameter: 450-508mm


Main Roll Forming Machine

It is designed according to the customers' profile drawing. It adopts motor reducer drive, chain transmission, roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep th e molding plate surface smooth and not easy to be marked when it is being stamped.
Adjusting every parts in good condition then ship
Material of rollers: Cr12.
Main power: 22kw(cycloidal planetary gear speed reducer)



Cutting  System

It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.
Power:5.5kw
Hydraulic oil: 40#
Components: The system includes a set of hydraulic tank, a set of hydraulic oil pump, and two hydraulic pipes. And two sets of electromagnetism valves.
With reducer combination, long life, high precision



Computer Control Cabinet


It adopts Delta/Siemens PLC to control. The target piece's length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use. Easy Operation
