Automatic Galvanized Steel Glazing Roof Tile Roll Forming Machine

FOB Reference Price:Get Latest Price
$9,500.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hebei, China
Brand Name:
ZY
After-sales Service Provided:
Free spare parts, Engineers available to service machinery overseas
Warranty:
2 Years
glazed tiles making machine power:
8kw
glazing tiles forming machine PLC:
Delta
glazed sheet cold forming machine color:
blue and yellow or at your requirements
glzing Sheet Roll Forming Machine Sizes:
5*1.1*1.4m
Glazing Tiles Making Machine certificate:
CE/9001
ROOFING Sheet roller material:
C12
guarantee for Glazing Sheet Machine:
2 years
Tiles Forming Machine shaft size:
70mm
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
the main forming part of the Automatic Galvanized Steel Glazing Roof Tile Roll Forming Machine is nude, the computer controlling part is packed with water proof cloth.
Port
TIANJIN
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 35 To be negotiated

Welcome to Cangzhou Zhiye Cold Forming Machinery Co.,Ltd



Automatic Galvanized Steel Glazing Roof Tile Roll Forming Machine



Product Description

General information for Automatic Galvanized Steel Glazing Roof Tile Roll Forming Machine

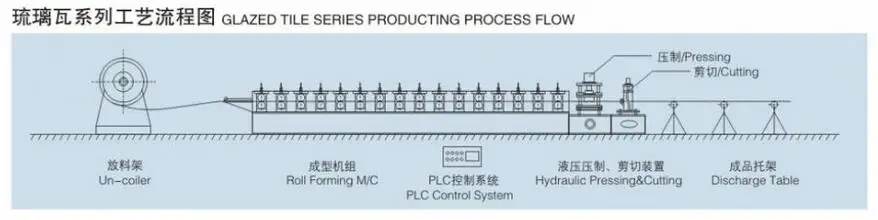

The tiles produced by this machine are widely used in all kinds of factories, houses, warehouses and simple steel shed, and with beautiful appearance, high efficiency and reliable working.It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, high precision counter and so on.

The parameters of Automatic Galvanized Steel Glazing Roof Tile Roll Forming Machine

No.

Item



1.

Processing Material

PPGI,GI

2.

Processing Thickness(mm)

0.3-0.6mm

3.

Coil width

1220mm

4.

Material of Rollers

45# steel, with hard chrome coated

5.

Diameter of Shaft

76mm

6.

Production Speed

0-5m/min

7.

Roller Driven

Decelerating Motor+Chain Transmission

8.

Cutting Model

Hydraulic Profile Cutting

9.

Length Measurement

Encoder

10.

Control Style

PLC

11.

Operation Model

Button + Touch Screen

12.

Total Power

8kw

13.

Voltage

380V 50HZ or at buyer's request

14.

Testing Material

Q195



Detailed components introduction for the Steel Glazing Roofing Tile Roll Forming  Machine

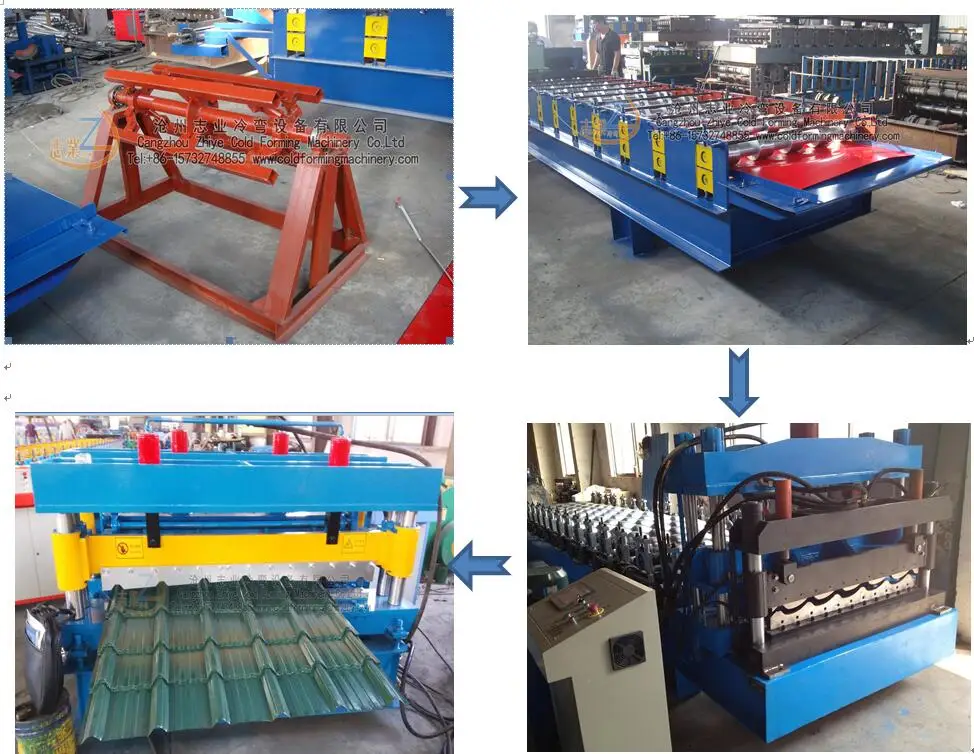

1.Manual Decoiler of the Steel Glazing Roofing Tile Roll Forming  Machine

1):coil inner diameter:  450-550mm
2):coil max width: 1250mm
3):max carrying capacity: 5000kg
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system

2.Coil feeding part of the Steel Glazing Roofing Tile Roll Forming  Machine

Usage:Put the raw material(steel plate) through the beach to manufacture and process,

it can guarantee that the products are neat, parallel and everything is uniformity.
Please refer to the equipment regulation to know the function of locate angle iron.

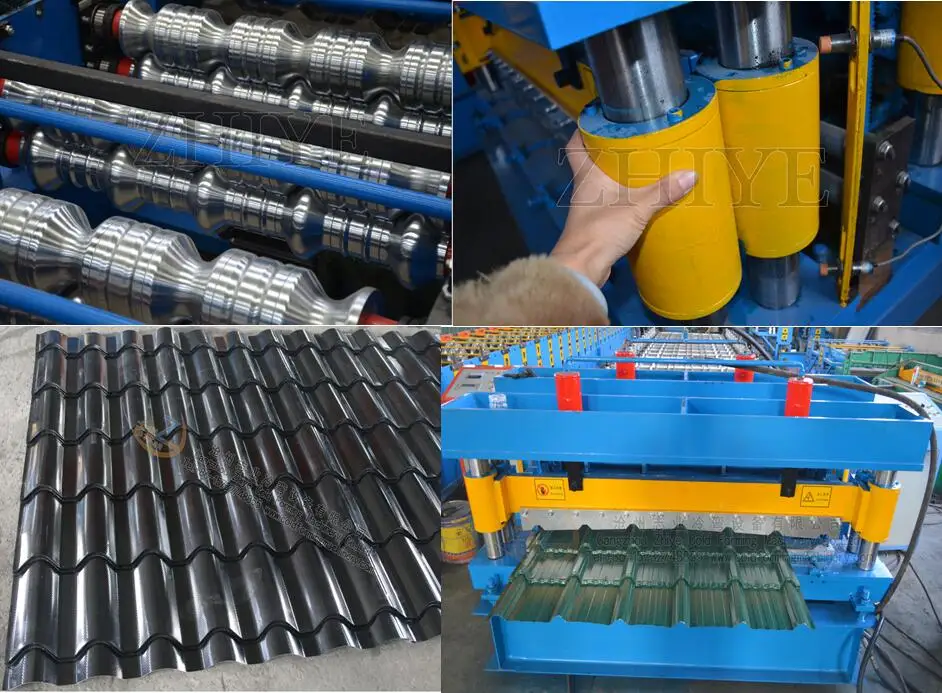

3.Main roll forming machine part of the Steel Glazing Roofing Tile Roll Forming  Machine

1).roller material: 45# steel with hot treatment at 52-68 degrees, hot chormed on the surface to make sure its hardness.shaft material: solid shaft(not hollow style), around 70kg/pc, to make sure the strength of it.and final profile shape are perfect in this way. shaft diameter: normally is 72mm.
2).power: normally 7kw in total
3).transmission model: gear and chain
4).controlling model: PLC controlling system, fully automatic.
5).Forming speed: 0-17m/min
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, chain transmission,roller was chromed which can keep the molding plate surface smooth and not easy to be marked when it is working

4.Automatic cuttting system of the Steel Glazing Roofing Tile Roll Forming   Machine

1).Material: blade, puncher and mold material: Cr12 steel with quenched treated 60-62

2).Cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.It adopts the hydraulic drive and automatic encoder to cut the accurate length you set on the computer.The tolerance is within 10m±1mm ;  Material of blades: Cr12 quenched ; Power supply : hydraulic power   Components:It contains one set of blade, one hydraulic tank and one cutter machine

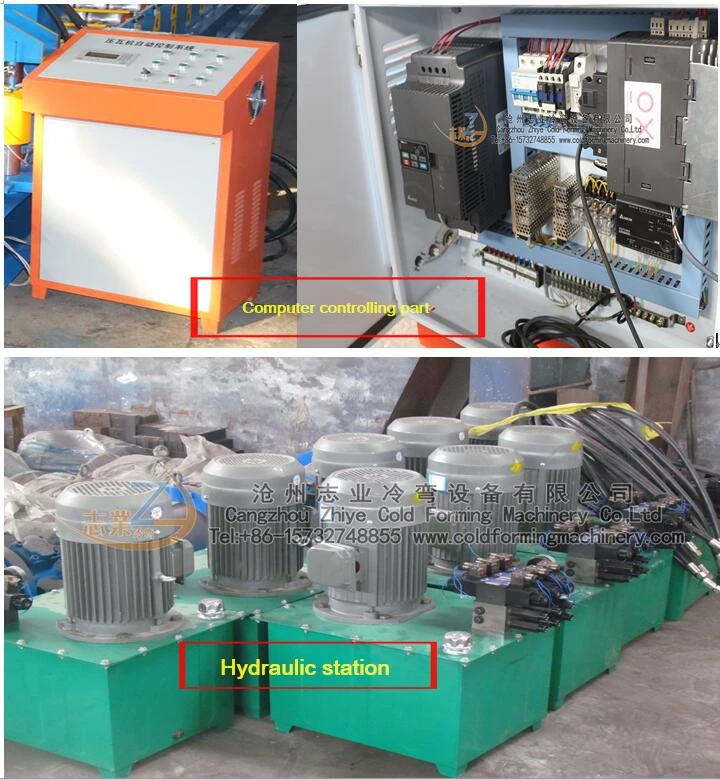

5.Computer controlling part of the Steel Glazing Roofing Tile Roll Forming Machine

1).PLC brand: Normally, it is Delta. Mistubishi, Panasonic, Siemens are optional.
2).working model: fully automatic and manaul
3).working language: normally are English, Chinese,Russia. Can be set as per your requirements.
6. Hydraulic station of the Steel Glazing Roofing Tile Roll Forming  Machine

1).including one motor,one oil tank,one magnetic valve,one pressure gage, hydraulic oil tube
2).3kw,4kw,5.5kw,will be adopted as per your profile sheet.



Packaging & Shipping
     Usually the Steel Glazing Roofing Tile Roll Forming   Machine can be packed into one 20 feet or 40 feet container. we have good relationship wih the shipping agent to get good freight price for you and you can also find yourself at your side.



Our Services

1.Warranty
    Two years,and we will provide technical support for wholelife of the equipment.
2. Installation And Charge
1)Purchaser pays all charges during period of install to overseas,(include charges of food,lodging and round trip air tickets ,etc.)Moreover,pay subsidy 60USD/day until Installation finished.
2)If problems happened out of warranty and need debugging overseas,Customer should pay for all the charges (including food,lodging and round trip air tickets etc.).Moreover pay 100USD/day till install finished

Company Information

         Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines,Steel Glazing Roofing Tile Roll Forming   Machine, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.

        Our products at large scales have been sold to more than 50 countries and regions, Thailand,India,Malaysia,Turkey,Saudi Arabia, Russia,Albania,Armenia,the United States, Grenada,Bolivia,Colombia,Chile,South africa,Kenya, Tanzania,Egypt and etc, and has won the universal appreciation and commendation from the customers all over the world.
