Metal Profiling Double Layer Roof Panels Roll Forming Machines

FOB Reference Price:Get Latest Price
$7,000.00 - $15,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
ZY
Power(W):
4+4KW
Lead Time:
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Warranty:
3 years
Type:
Tile Forming Machine
Production Capacity:
0-7m/min
Certification:
CE ISO SGS
After-sales Service Provided:
Online support, Free spare parts, Field maintenance and repair service, Video technical support
Condition:
New
Tile Type:
Steel
Use:
Roof
Place of Origin:
Hebei, China
Brand Name:
ZY
Voltage:
380V 60HZ
Dimension(L*W*H):
6500*1200*1400mm
Weight:
3500kg
Processing Material:
PPGI, GI
Processing Thickness(mm):
0.3-0.6mm
Material of Rollers:
45# steel, with hard chrome coated
Cutting Model:
Hydraulic Profile Cutting
Diameter of Shaft:
76mm
Production Speed:
0-10m/min
Cutting material:
Hydraulic Profile Cutting
Roller Driven:
Decelerating Motor Chain Transmission
Operation Model:
Touching Screen
Length Measurement:
Encoder
Supply Ability
Supply Ability:
500 Set/Sets per Year
Packaging & Delivery
Packaging Details
nude, the computer controlling part is packed with water proof cloth.
Port
tianjin
Lead Time :
Quantity(Sets) 1 - 20 >20
Est. Time(days) 30 To be negotiated

Metal Profiling Double Layer Roof Panels Roll Forming Machines

Product Description

Color Coated Steel Double Decker Roofing Panel Cold Forming Machinery is perfectly combined two different-model machines together, this can save the space and also is easy to operate. The two models are chose according to customers" need.



Processing Material

PPGI,GI

Processing Thickness(mm)

0.3-0.8mm

Material of Rollers

45# steel, with hard chrome coated

Diameter of Shaft

75mm/80mm

Production Speed

0-10m/min

Roller Driven

Decelerating Motor Chain Transmission

Cutting Model

Hydraulic front cutting+hydraulic back cutting

Length Measurement

Encoder

Operation Model

Siemens Touching Screen

Total Power

8kw

PLC

Delta PLC

Side Plate Thickness

18mm

Cutting blade thickness

30mm

Blade material

45# carbon steel

Roller material

45# carbon steel with chrome coating

Spacer thickness

5mm thick spacer







Components of Automatic Double Decker Roof Sheet Forming Machines CE Certificate

Hydraulic Uncoiler with Coil Car

Feeding platform

Molding core

Cutting system

Hydraulic station

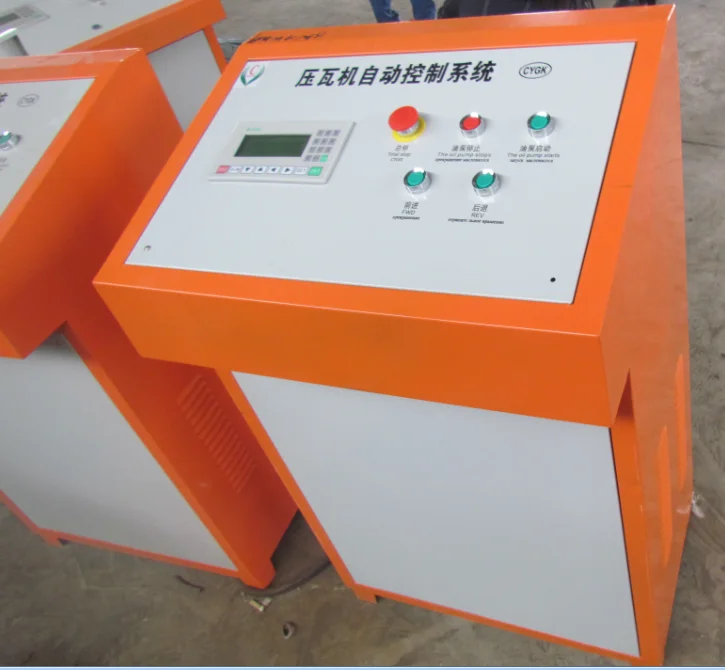

Computer control cabinet









Picture for some parts of the New Style Double Layer Roof Tile Roller Former Machines Made in China for refernces





Packaging & Shipping



 Usually the Double Deck Roofing Sheet Roll Forming Machines can be packed into one 20' feet container or 40' feet container. We have good relationship with the shipping agent. Either you can find the shipping line at your side or we can help you.





Our Services

 Square Downpipe Roll Forming Machine

We will offer technical support for all the roll forming machines the whole life. 2 years free spare parts replacement and maintaince. Our international technicians can be reach your workshop at the first time if your machines has problem.



Company Information

  Cangzhou Zhiye Cold Forming Machinery Co., Ltd is the manufacturer specialized in various cold forming machineries and automatic production lines. Main products are: roofing/wall panel roll forming machines, tile roll forming machines, C/U/Z purlin roll forming machines, floor decking roll forming machines, steel frame truss roll forming machines, pipe roll forming machines and customerized machines.

Our main roll forming machines are:



Roofing sheet roll forming machine

Double Layer Sheet Roll Forming Machine

Glazed tile roll forming line

Floor decking panel making machines

CUZ purlin production line
